HC2069 Bollard
Angled cap with ridge design
DDA Compliant for visually impaired
3mm Wall Thickness

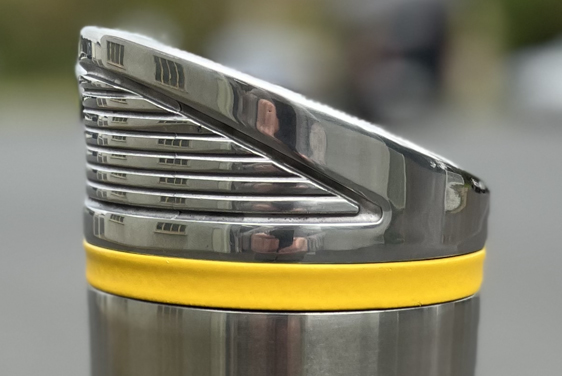

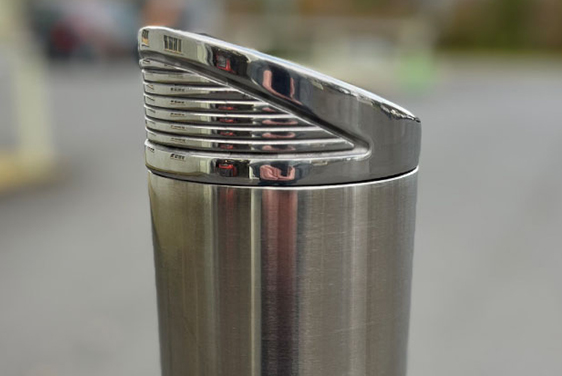

The HC2069 stainless steel bollard is made with a cast stainless steel angled cap with ridge design.
This street bollard is manufactured from stainless steel and is powder coated to colour of choice.
Hartecast is Ireland’s leading designer and manufacturer of street bollards.
HC2069 Bollard Specifications
- Stainless steel bollard with cast stainless steel angled cap with ridge design.
- Brushed stainless steel finish.

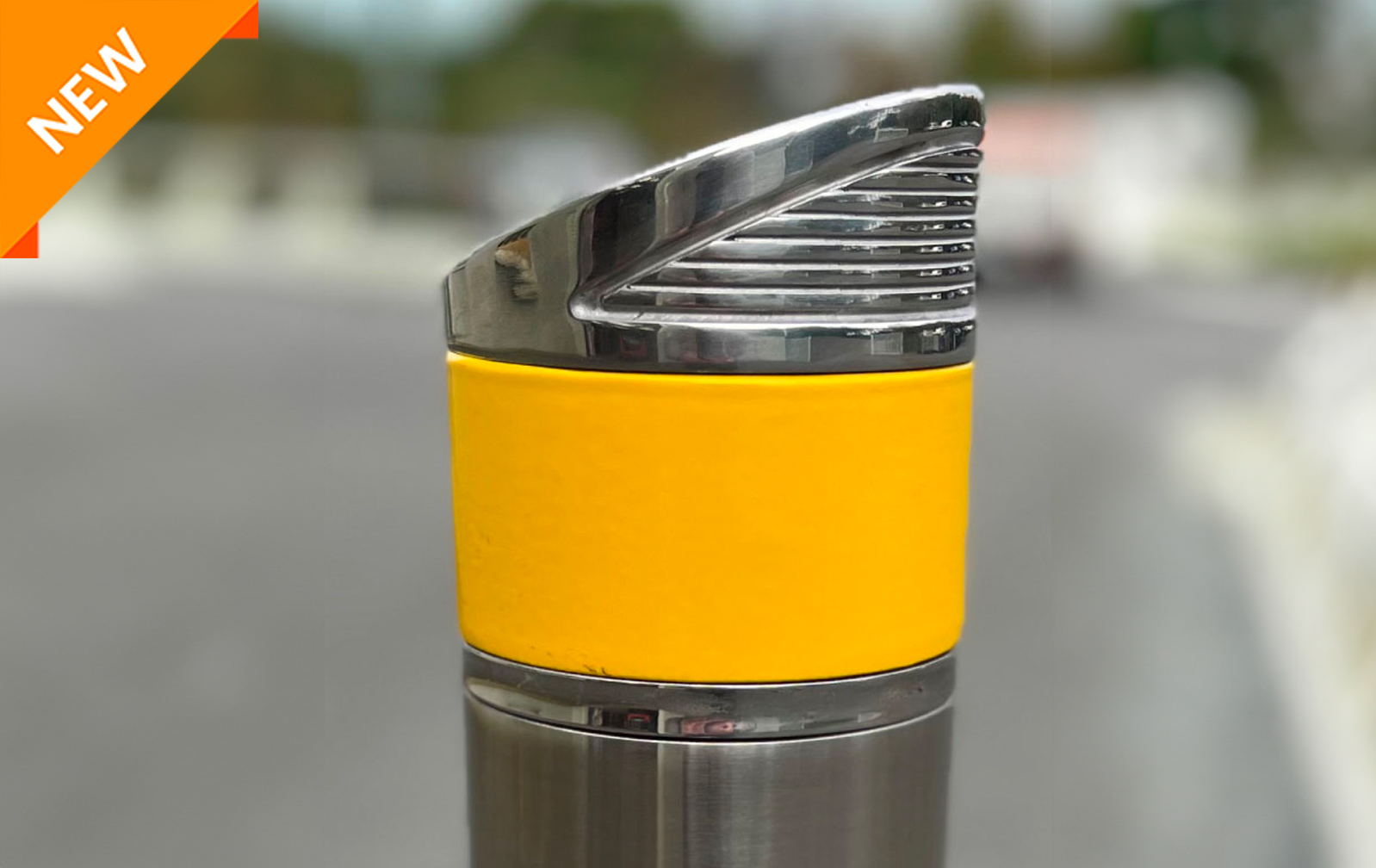

- The optional contrasting colour top section can be 50/100/150 – Ref: HC2069C.
- DDA Compliant for visually impaired.
- 316 grade stainless steel.
- Pipe is 101mm x 3mm wall thickness.
- 900mm overground level and 300mm underground level.
Options Available:
- Fixed and removable versions available.
- Other lengths available on request.
- Range of retention sockts available.
- Base plates available.
- Colours.
- Also available with double collar, Ref: HC2069DC.
- Available with single ring or multiple rings.
Fitting:
Fixed bollard is fixed underground level in concrete, removable bollard comes complete with a retention socket.
Concrete Foundations:
Fixed Bollard: 500 x 500 x 300mm
Removable Bollard: 500 x 500 x 300mm (hardcore for drainage is recommended under the socket before the concrete).
