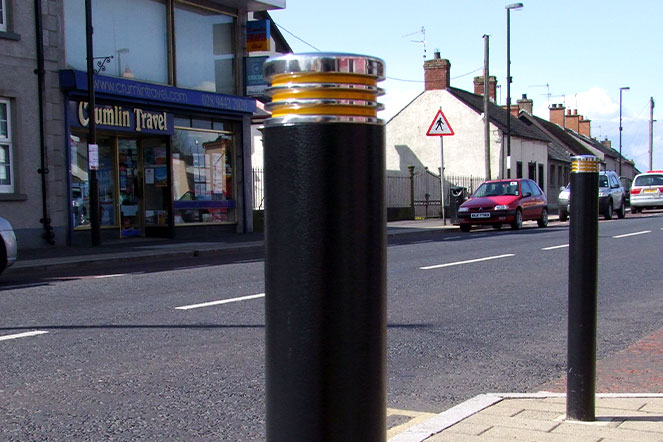

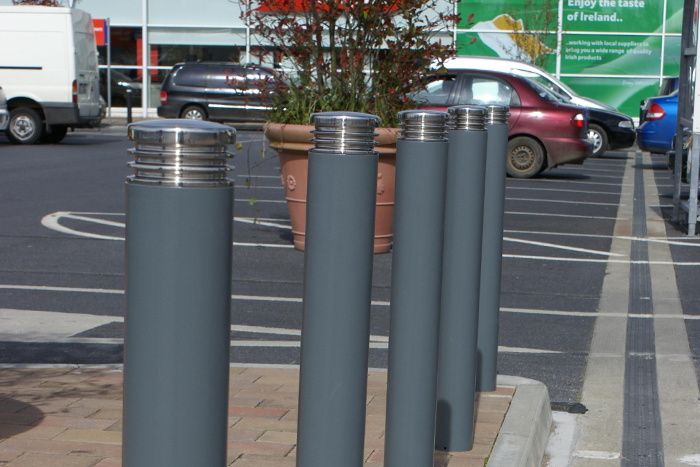

HC2066 Bollard
114mm Diameter
3mm or 4mm Wall Thickness
Brushed or Powder Coated Finish

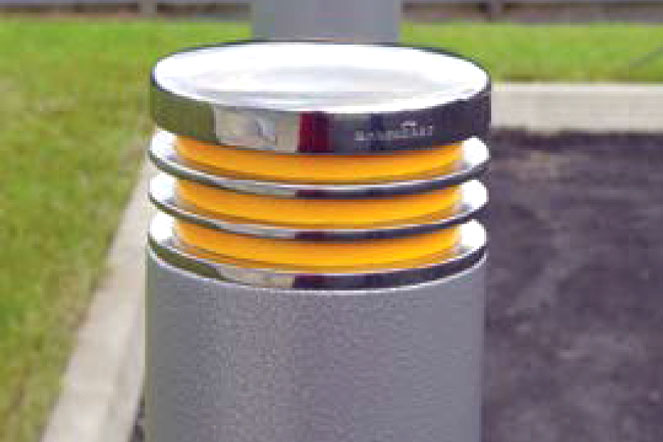

The HC2066 bollard is manufactured from 316 grade stainless steel with a cast stainless steel ridge design cap.
It has various options available, such as optional collars and contrasting powder coated top sections.
HC2066 Bollard Specifications
Specifications:
- Square Stainless Steel bollard with cast stainless steel sloped square cap.
- 3mm 316 grade stainless steel or 4mm 304 grade powder coated stainless steel
- Pipe is 114mm diameter with 90mm high cap.
- 900mm overground level and 300mm underground level
Fitting:
- Fixed bollard is fixed underground level in concrete, removable bollard comes complete with retention socket.
Concrete Foundations:
- Fixed bollard: 500 x 500 x 300 mm
- Removable bollard: 500 x 500 x 300 mm (hardcore for drainage is recommended under the socket before the concrete).
Options Available:
- Fixed and removable versions available.
- Fits our HC114F/HC114R drop bar or HC114RSS retention sockets.
- Other lengths available on request.
- Base plates available.
- Colours.
- Reflective Strip
- Matches our HC2066 cycle stand.
- Brushed finish or powder coated finish.
